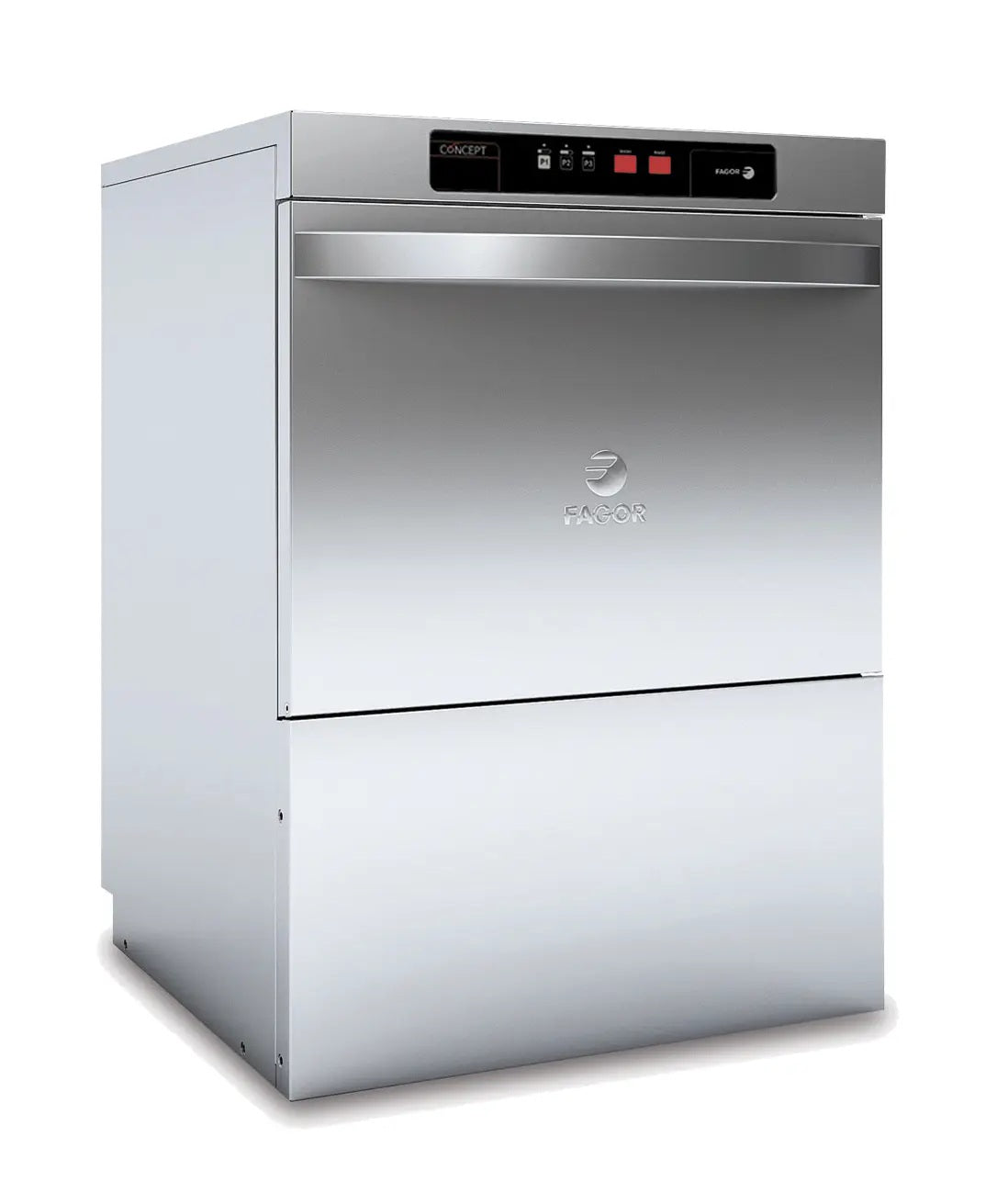

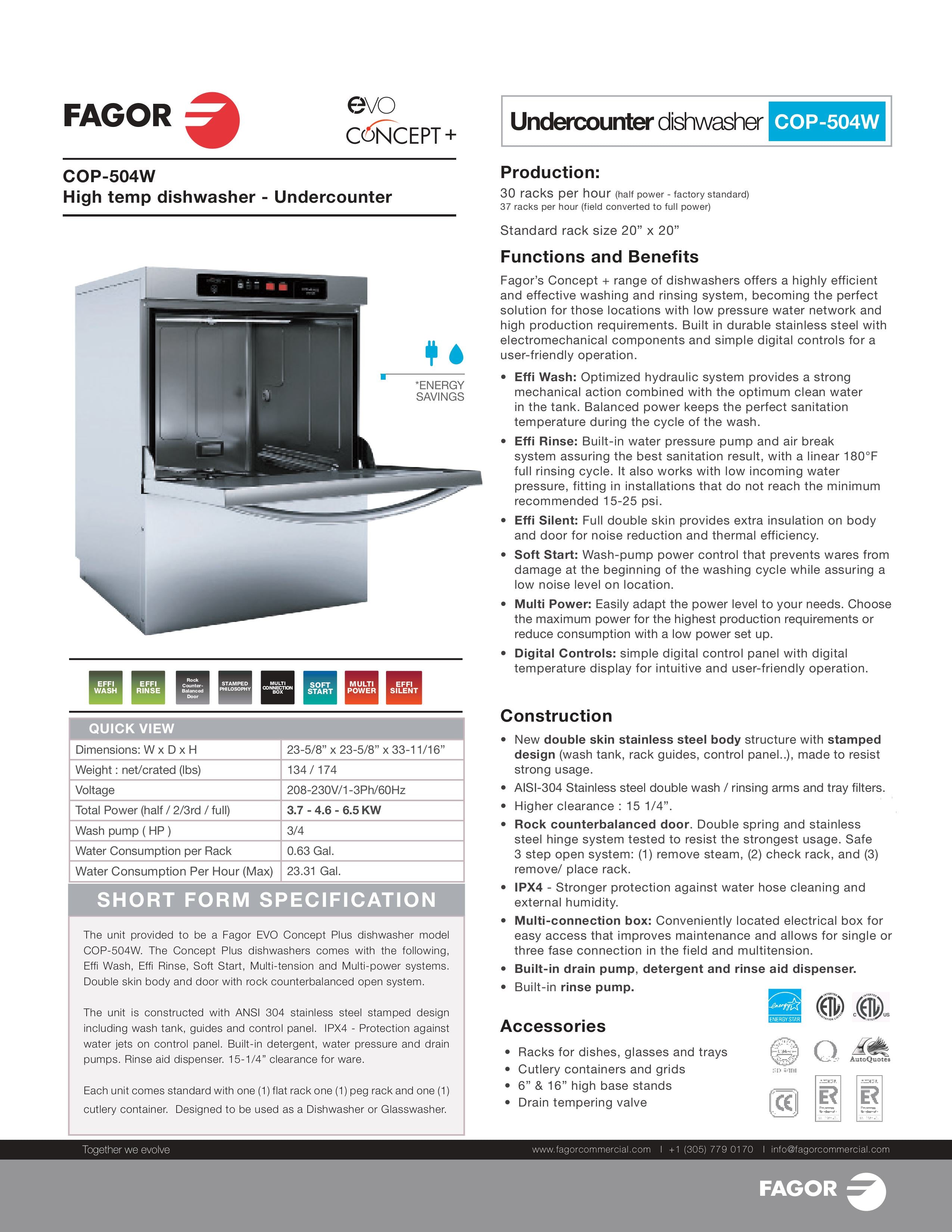

Fagor COP-504W | Undercounter, High-temperature Dishwasher

Fagor Concept+ Undercounter Dishwasher
High-Efficiency Cleaning for Demanding Environments

The Fagor Concept+ series is engineered for operations that require exceptional wash performance, consistent sanitation, and reliable results, even in locations with low incoming water pressure. Designed with durable stainless-steel construction, thoughtfully engineered hydraulic and rinsing systems, and simple digital controls, the Concept+ dishwasher delivers high production capacity with energy-efficient operation. Whether you need maximum output or reduced power consumption, this model adapts effortlessly to your kitchen’s needs while maintaining user-friendly operation.

Functions & Benefits

• Effi-Wash System – Optimized hydraulic design delivers strong mechanical action and ideal clean-water levels while maintaining stable sanitation temperatures throughout the wash cycle.
• Effi-Rinse – Integrated rinse pump and air-break system provide a consistent 180°F linear rinse, ensuring top-tier sanitation even in locations with water pressure below the recommended 15–25 psi.
• Effi-Silent – Full double-skin insulation on the body and door reduces noise and improves thermal efficiency.
• Soft Start – Gradual activation of the wash pump protects delicate wares and helps maintain low noise levels.
• Multi-Power – Adjust power settings to match your production needs: choose full power for maximum throughput or select a lower setting for reduced energy consumption.
• Digital Controls – Intuitive digital control panel with temperature display for simple, reliable operation.

Production

• 30 racks per hour – factory standard (half-power)
• 37 racks per hour – when field-converted to full power
• Standard rack size: 20" x 20"

Construction

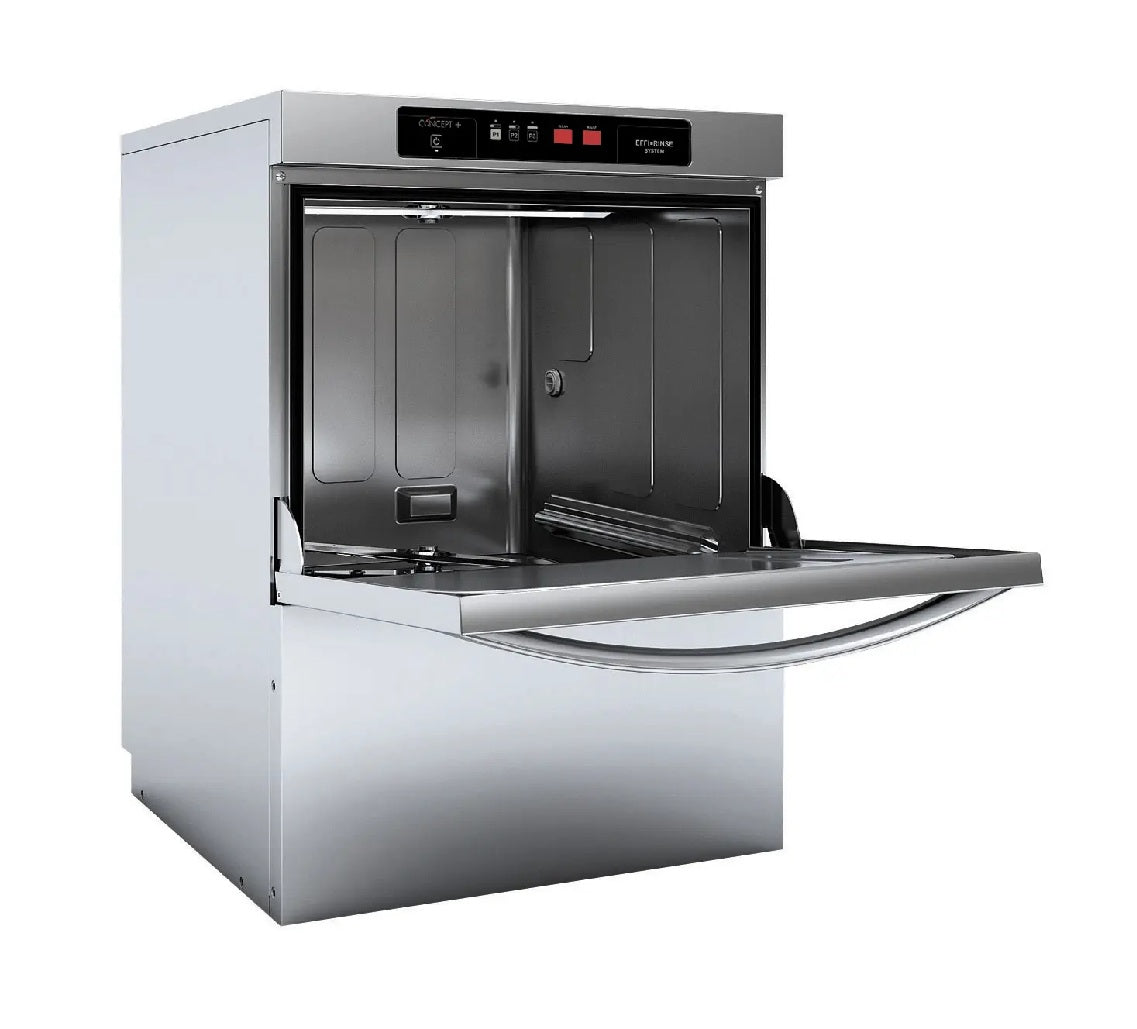

• Double-skin stainless-steel body with stamped wash tank, rack guides, and control panel for enhanced durability.
• AISI-304 stainless-steel double wash/rinse arms and tray filters for long-term reliability.
• 15 1/4" interior clearance to accommodate larger wares.
• Rock counterbalanced door with double springs and reinforced stainless-steel hinges, engineered for heavy use.
• IPX4 water protection for durability during hose-down cleaning and in humid environments.
• Multi-connection electrical box for easy maintenance, single- or three-phase field connection, and multi-voltage capability.
• Built-in drain pump, detergent dispenser, rinse-aid dispenser, and rinse pump.

Accessories

• Racks for dishes, glasses, and trays
• Cutlery containers and grids
• 6" & 16" high base stands
• Drain tempering valve


Included with each unit

• (1) Flat rack
• (1) Peg rack
• (1) Cutlery container

Warranty

• Duration: 1-year parts and labor from installation date
• Coverage: Defects in materials and factory workmanship under normal commercial use
• Labor: Covered when performed by a Fagor-authorized service representative within the warranty period
• Limitations: Travel time and mileage may be limited; some consumable parts may not be covered
• Proof of Purchase: Required for all warranty claims
